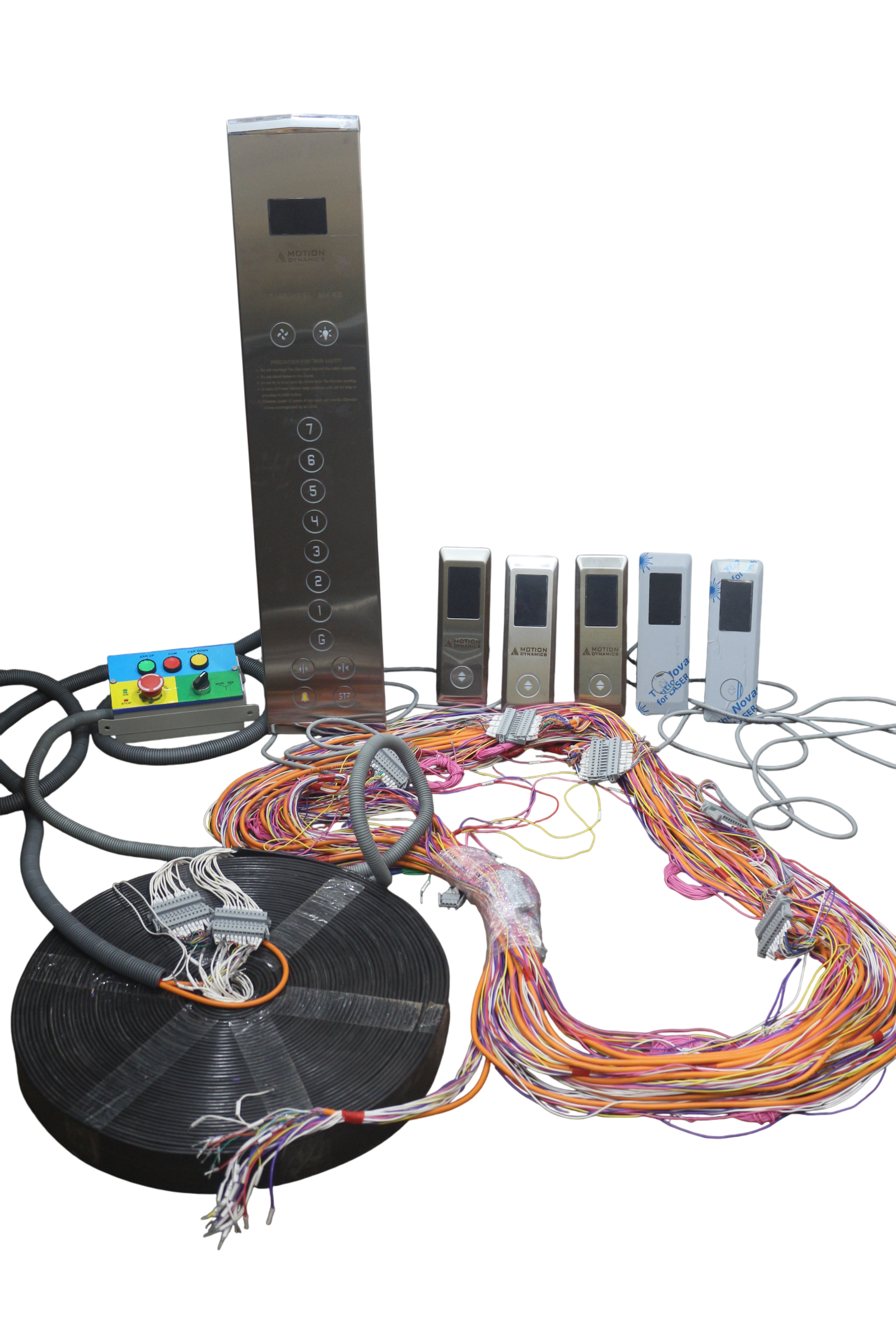

Elevator Harness Wiring Push & Plug Solutions for Safe & Reliable Elevator Connectivity

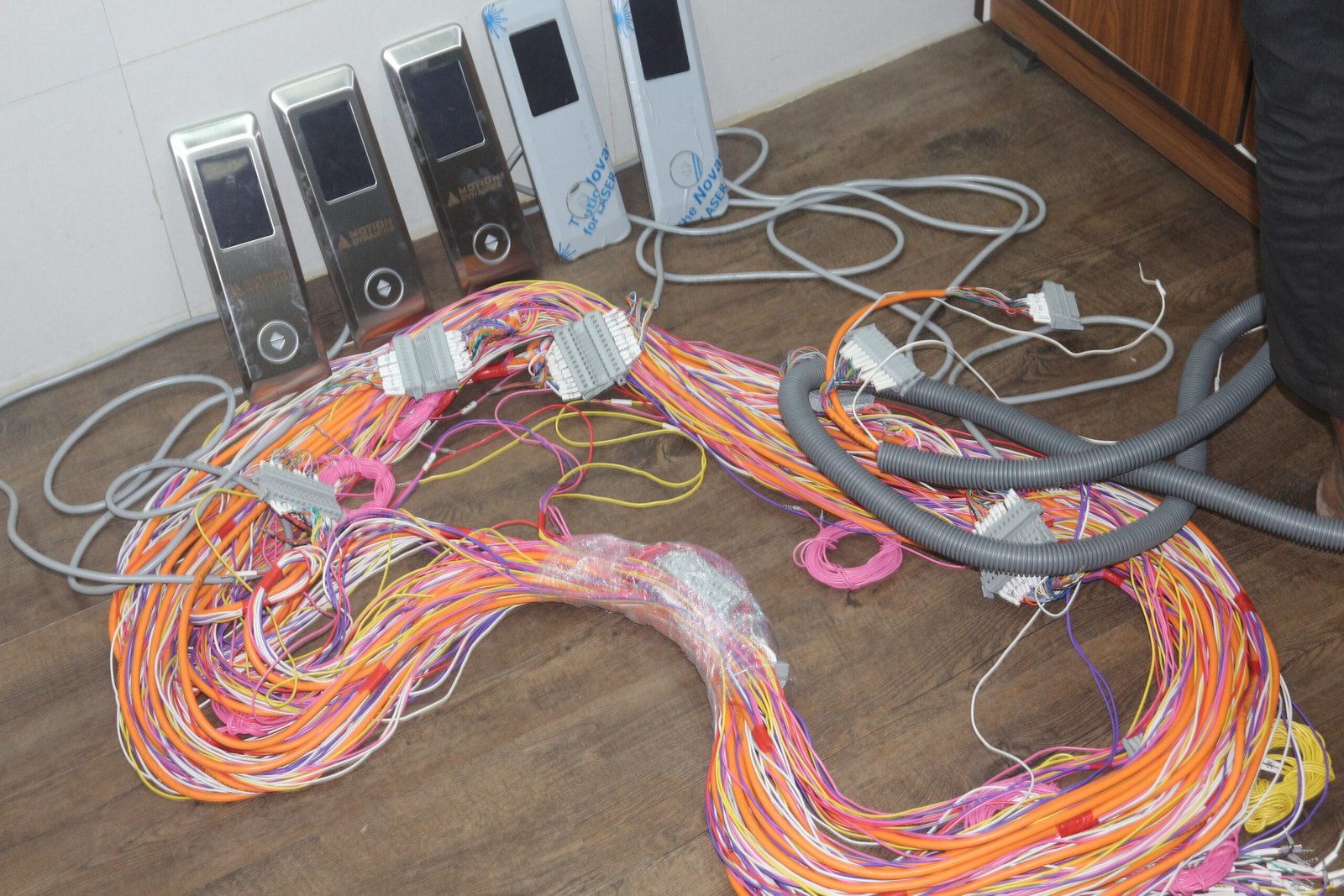

Elevator Harness Wiring Push & Plug systems are designed to provide secure, organized, and efficient electrical connections for modern elevator installations. These plug-and-play wiring harnesses simplify the installation process while ensuring consistent performance, enhanced safety, and long-term reliability across residential, commercial, and industrial elevators.

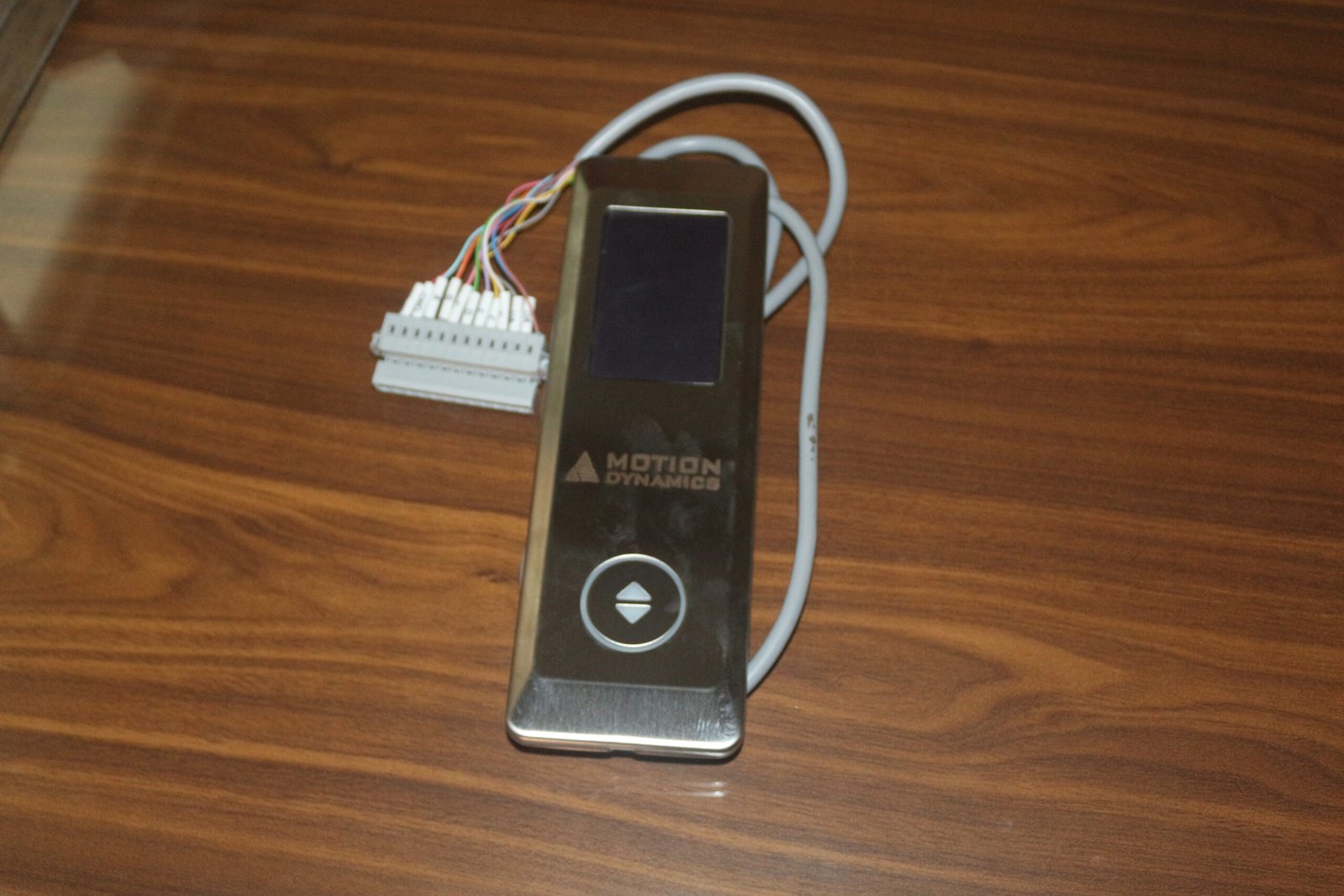

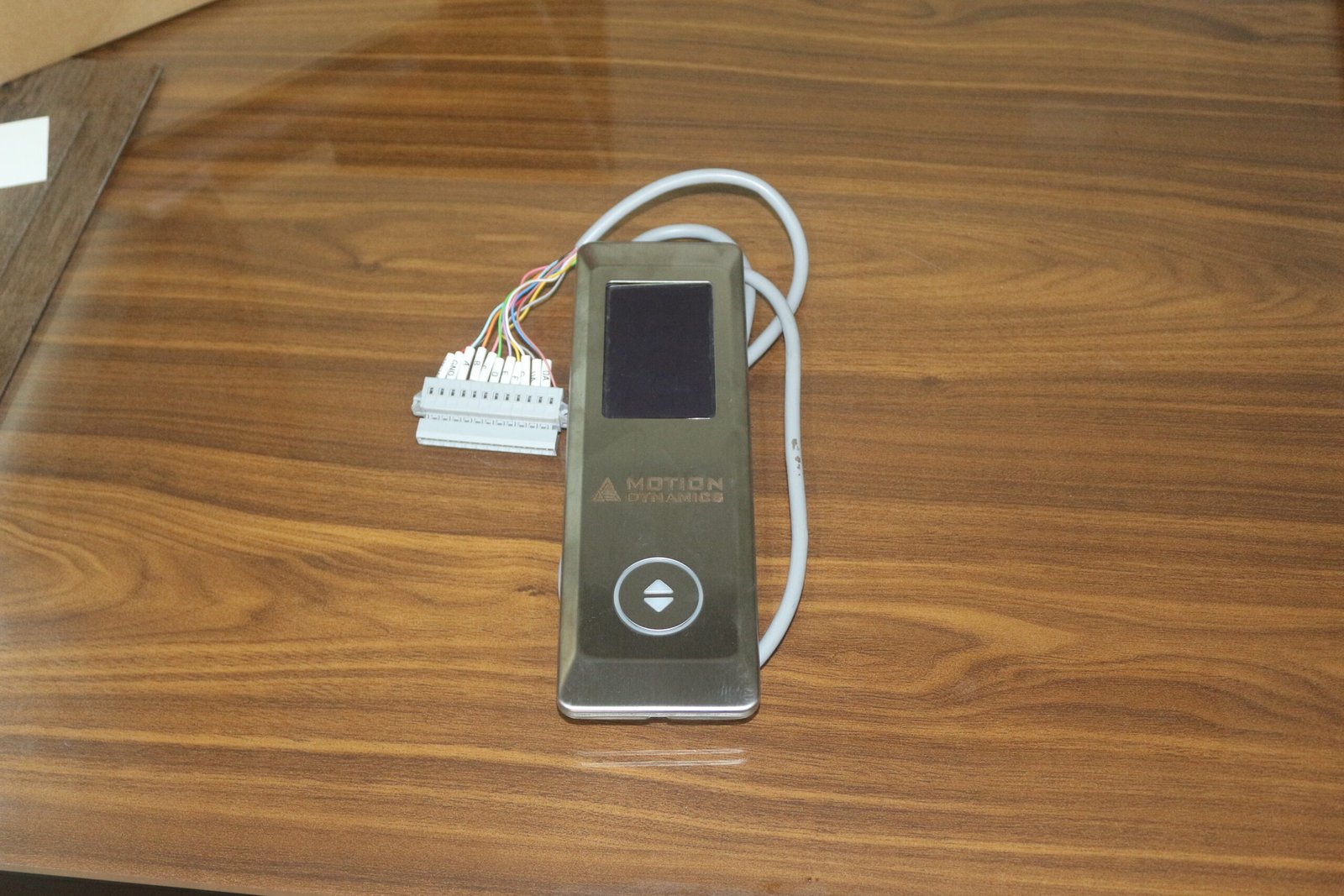

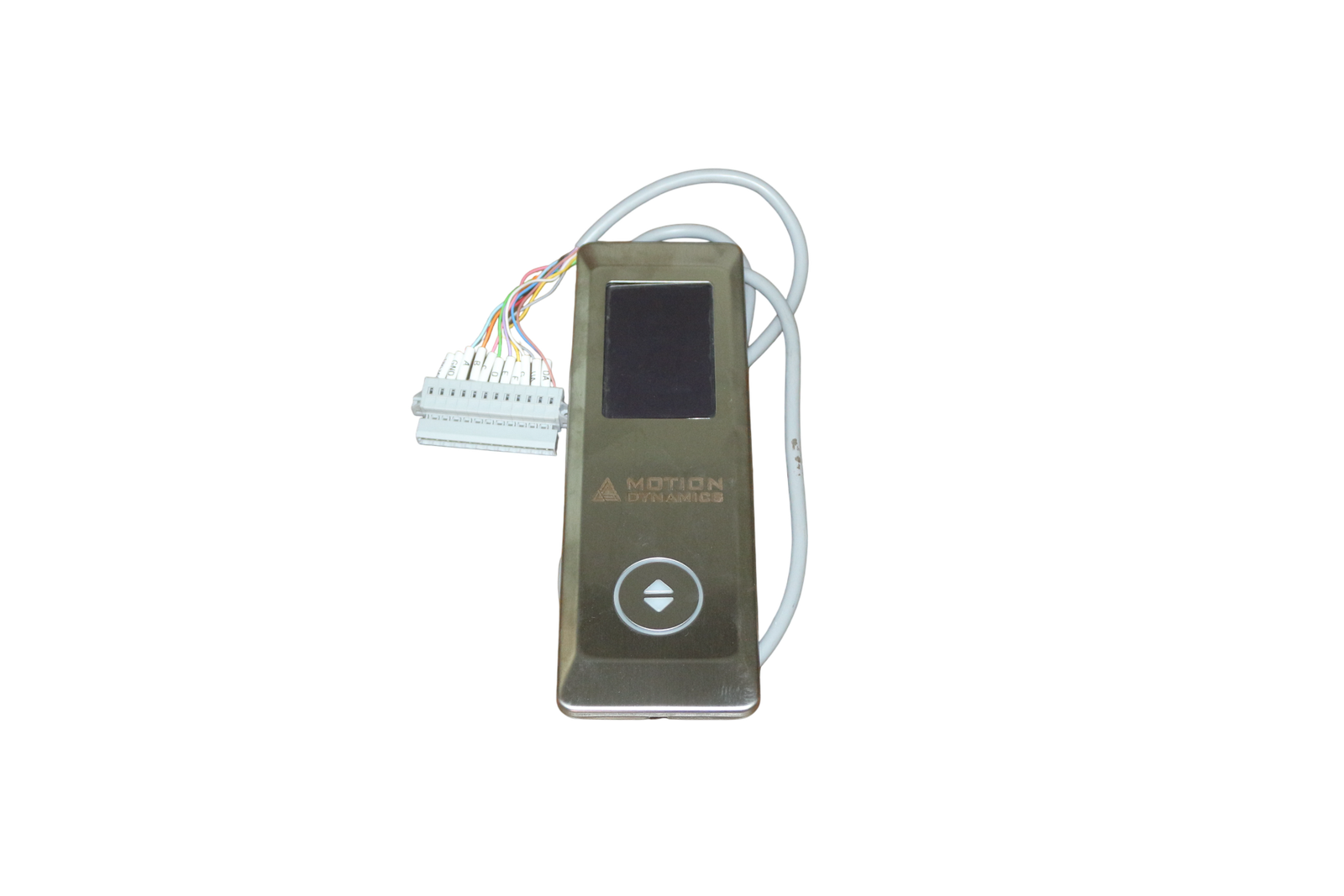

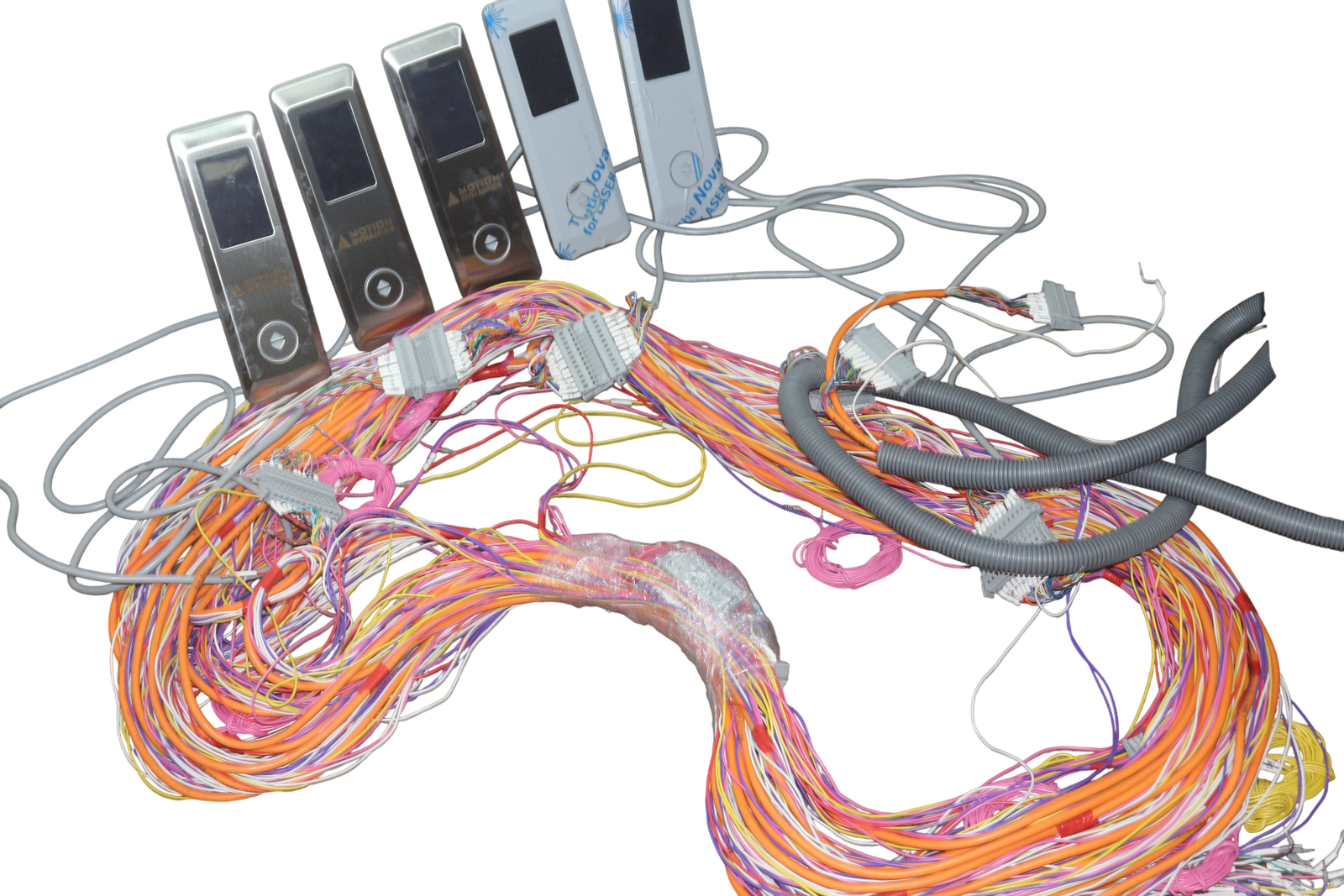

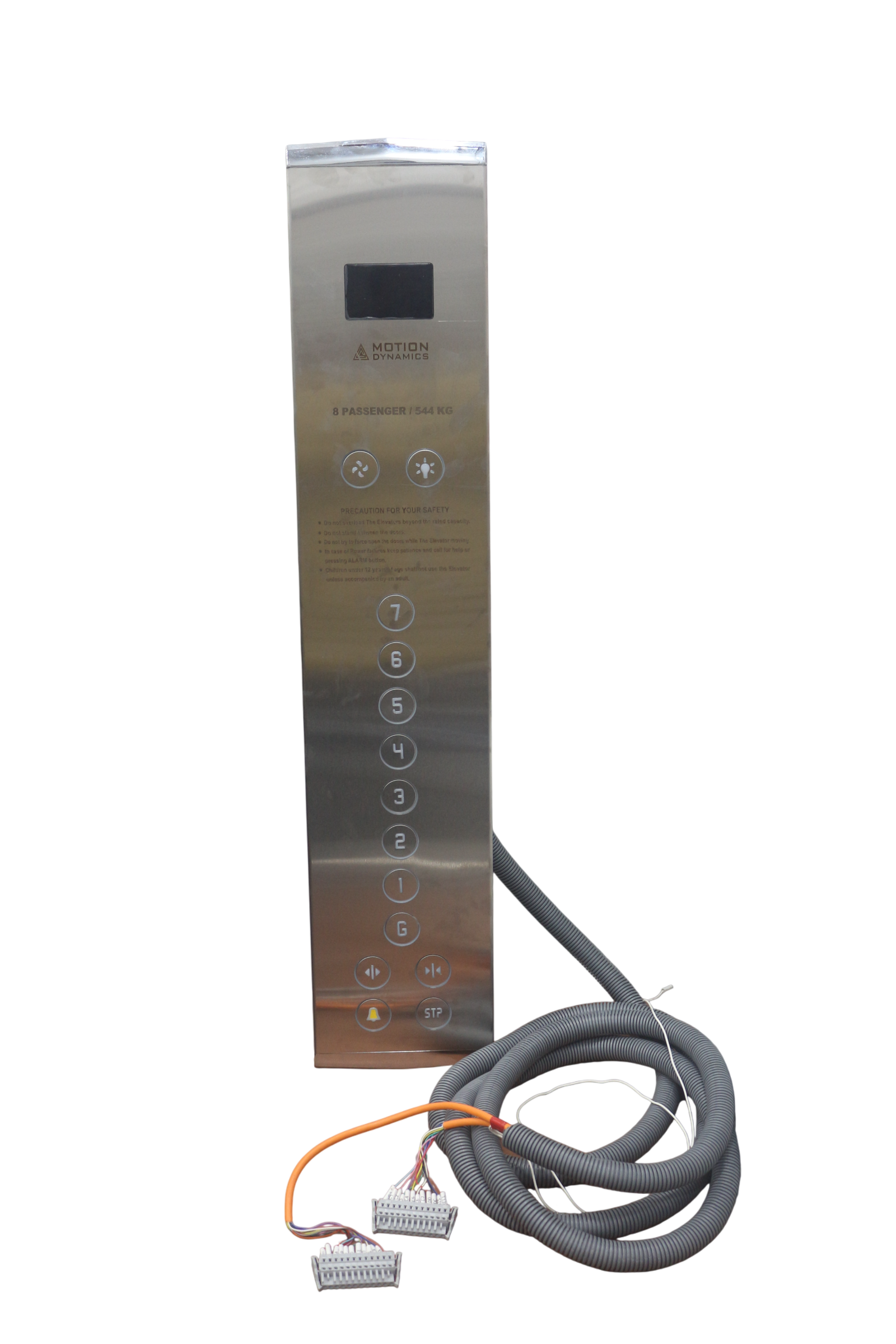

Our premium-quality elevator wiring harnesses are manufactured using high-grade cables, durable connectors, and precision-engineered plug systems that ensure seamless communication between elevator control panels, landing stations, car operating panels (COP), door operators, sensors, safety devices, and other electrical components.

The Push & Plug wiring concept significantly reduces installation time by eliminating complex field wiring. Each harness is factory-tested for accurate pin configuration and electrical continuity, ensuring error-free connections and minimizing commissioning time.

Designed to withstand continuous movement, vibration, temperature variations, and demanding operating environments, Windsor Controls’ elevator harness wiring solutions deliver exceptional durability, improved maintenance efficiency, and dependable system performance throughout the elevator’s service life.

Whether for new elevator installations, modernization projects, or replacement applications, our customized harness wiring systems provide a reliable solution that enhances installation quality, operational safety, and maintenance convenience.

Key Features

• Plug-and-play installation for faster commissioning
• Factory-tested harness assemblies for guaranteed reliability
• Precision-engineered push & plug connectors
• High-quality flexible cables with long bending life
• Organized wiring for neat and professional installation
• Reduces wiring errors during installation
• Excellent electrical conductivity and signal transmission
• Strong locking connectors for vibration resistance
• Flame-retardant and durable insulation materials
• Compatible with various elevator control systems
• Custom cable lengths and connector configurations
• Easy replacement and maintenance
• High resistance to wear, moisture, and environmental conditions
• Compact and lightweight design
• Long operational life with minimal maintenance

Applications

• Passenger Elevators
• Residential Elevators
• Commercial Elevators
• Hospital Elevators
• Freight & Goods Elevators
• Home Lifts
• Machine Room (MR) Elevators
• Machine Room Less (MRL) Elevators
• Hydraulic Elevators
• High-Speed Elevators
• Shopping Malls
• Hotels & Hospitality Buildings
• Corporate Offices
• Industrial Facilities
• Educational Institutions
• Airports & Metro Stations
• Public Infrastructure Projects
• Elevator Modernization Projects

Benefits

The Elevator Harness Wiring Push & Plug system simplifies electrical installation while delivering reliable and secure connectivity across every elevator component. Pre-engineered wiring assemblies reduce installation time, minimize wiring mistakes, and improve overall project efficiency.

With factory-tested connectors and premium-quality cables, the system ensures stable communication between control panels, door systems, sensors, and safety devices, resulting in improved elevator performance and reduced downtime.

Its modular design makes maintenance quicker and easier by allowing damaged harnesses to be replaced without extensive rewiring. High-quality insulation and durable connectors provide superior protection against vibration, moisture, heat, and continuous movement, extending the overall lifespan of the electrical system.

By combining safety, reliability, installation efficiency, and long-term durability, Windsor Controls’ Elevator Harness Wiring Push & Plug solutions offer an ideal choice for modern elevator manufacturers, installers, and maintenance professionals seeking dependable electrical connectivity and hassle-free operation.
