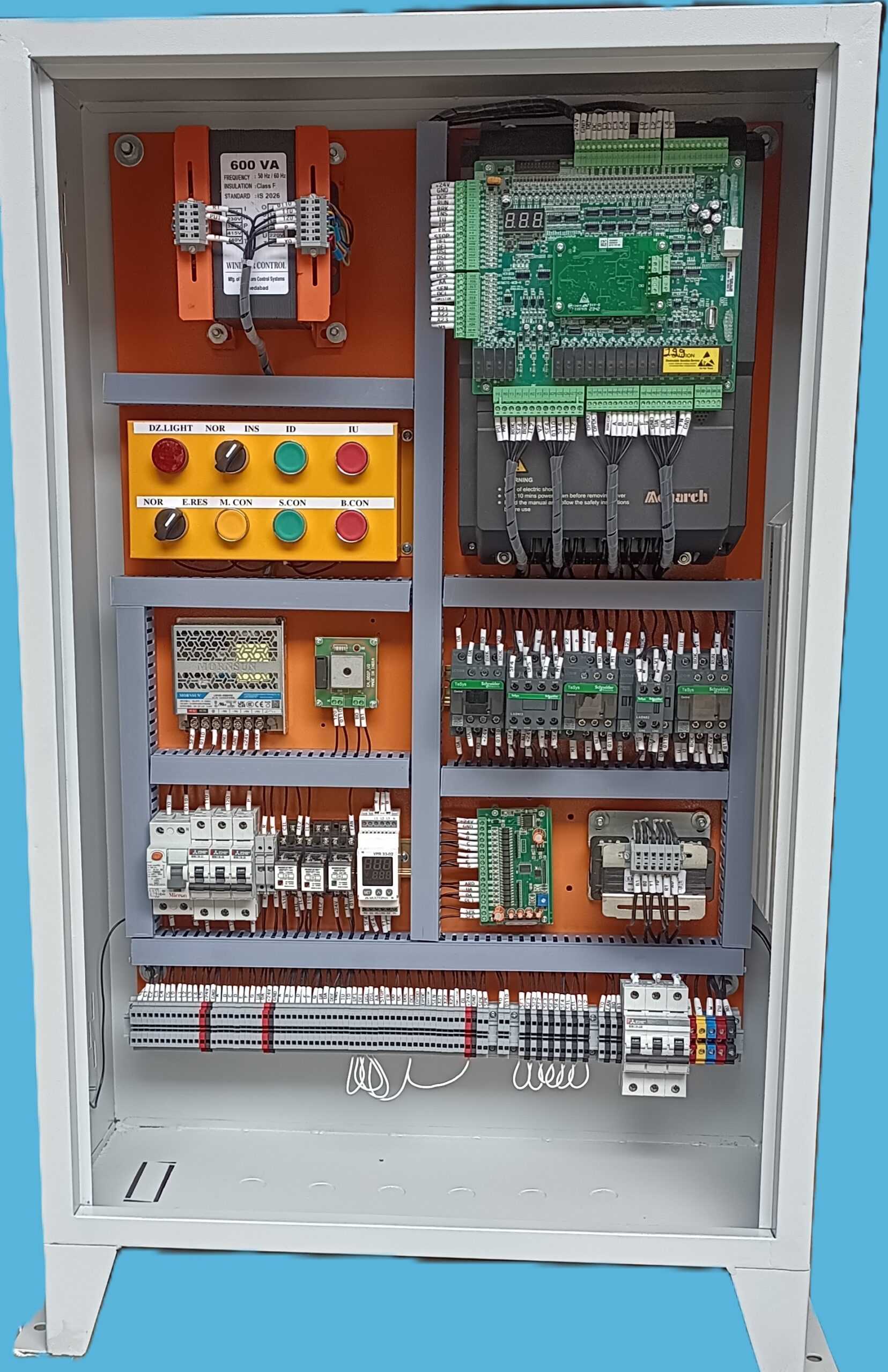

MONARCH CLOSE LOOP CONTROL PANEL

Power Rating:- 1. 2.2 kW to 45 kW. 3 Phase 380/400/415V 2. 2.2 kW to 30 kW. 3 Phase 220V 3. 2.2 kW to 3.7 kW, 1 Phase 220V Applications:-
  • Simplex elevator, Freight elevator, Villa elevator, duplex elevator
  • Max. Speed < 1.75 m/s
  •  Max. Floor < 8 landings and additional floor card up to 16 floors.
  •  Shaft learning is standard.
  • Direct-to-floor landing. smooth ride comfort, optimal travel mean time.
  •  Power on reset run is not needed.
  •  Practical reliable power Faiiure auto rescue emergency operation using 220V. 1ph UPS/ARD.
  •  Automatic identification operation between short-floors with different floor heights.
  •  Advance door opening and re Leveling using option card.
  • 7 segment LED display for floor position indicator and olso binary and bcd code output for display.
  • Wide variety of door function control lo meet dilferenl needs in freight lift doors requirement.
  •  Parallel wiring control for all digital input and output.
  • Optimum Exclusive function, quick easy start-up periods.
  •  Pre-factory default parameters setting facilitate zero parameter setting at site.
  •  All inputs and outputs are user programmable.
  •  Suitable for auto door as well as manual door.
  • decelerated and smoothly stop on emergency stop function.
  • we are provide under voltage , over voltage and earth  protection device for controller.
